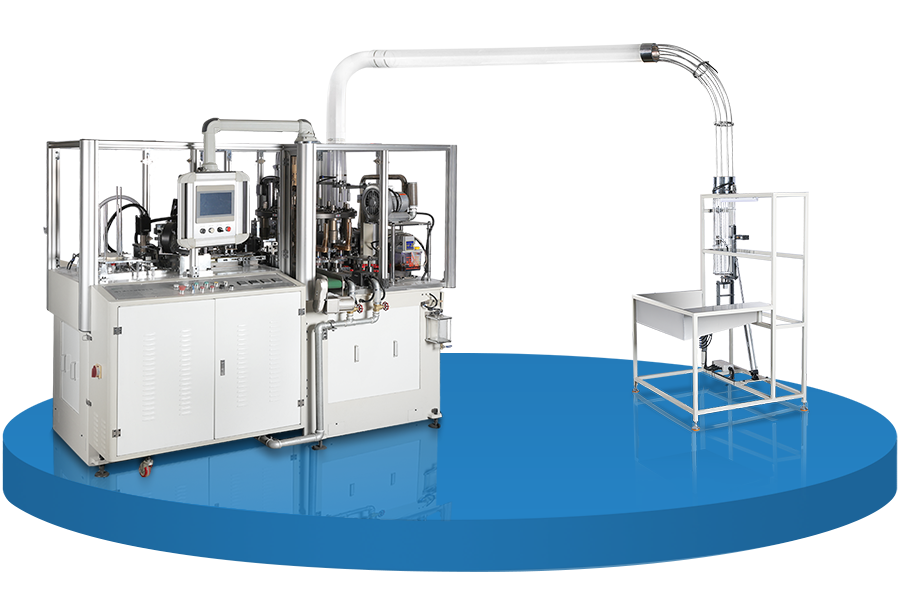

SMD-90 Paper Cup Machine

SMD-90 Paper Cup Machine

It is designed to produce single and double PE-coated paper cups for cold and hot drinking cups.
  • SMD-90 Paper Cup Machine
  • SMD-90 Paper Cup Machine
  • SMD-90 Paper Cup Machine
  • SMD-90 Paper Cup Machine
  • SMD-90 Paper Cup Machine
  • SMD-90 Paper Cup Machine
  • SMD-90 Paper Cup Machine
  • SMD-90 Paper Cup Machine
Contact Us
Description
SMD-90 is designed to produce single and double PE-coated paper cups for cold and hot drinking cups. It is suitable for coffee, beverages, tea, ice cream, and hot drinks cops with high performance.

Option for inspection could inspect the rim, inner side of the cup, and both sides of the cup bottom, cups with problems like broken cup rim and cup body, wrong rim rolling, leaking, and deformation will be selected automatically.

A paper fan conveyor also can be added, for delivery of the fan to a paper cup forming machine, which could reduce the time of loading paper fan material which saves labor costs a lot

The machine also can be connected to the packing machine, to save time for the finished paper cup package.
Specification
Model SMD-90
Capacity pcs/min 100-120 90-110 80-100
Size Range mm(max) Top Diameter: Φ90
Bottom Diameter: Φ80
H:140
Top Diameter: Φ110
Bottom Diameter: Φ80
H:170
Top Diameter: Φ125
Bottom Diameter: Φ100
H:170
Suitable Paper Thickness gsm 135-450
Sealing Method / Ultrasonic and hot air system
Running Power KW 10 11 12
Air Compressor / 0.4m²/Min. 0.5MPa 0.5m²/Min. 0.5MPa 0.6m²/Min. 0.5MPa
Net Weight Kgs 3400 3500 3600
Machine Dimension mm 2500*1800*1700 2600*1800*1800 2700*1800*1800
Collector Dimension mm 900*900*1760 1000*900*1860 1100*900*1860
Optional Supporting Equipment
Contact Us
Haining Chengda Machinery Co., Ltd.
Haining Chengda Machinery Co., Ltd.

Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional Wholesale PE Coated Paper Cup Machine Manufacturers and Dispoable Paper Cup MachineSMD-90 Paper Cup Machine Factory. We have R&D, production and sales department. After 20 years of hard work, our company has a strong technical team and a research and development center cooperating with Taiwan's senior paper container molding technology team and obtaining national patents such as a straight tube machine. Our company has modern assembly workshops, precision parts processing workshops, training centers, QA centers, and other infrastructure. Our company has CE, ISO9001 certification system, and national import and export rights.

In recent years, based on the characteristics of Chinese paper and the development trend of paper containers at home and abroad, we have developed a batch of international synchronization technology units of the intelligent molding Machine with automatic detection systems and remote connection systems for paper cup machine, paper tube machine, paper lid machine, doner box machine, etc.

Machine Industry knowledge

In the pulp preparation process of disposable paper cup machines, how to ensure that the texture and concentration of pulp are optimal?

Ensuring the quality of raw pulp is the first step. High-quality pulp should have the characteristics of long fibers, low impurities, and high uniformity. When purchasing pulp, suppliers should be strictly screened and suppliers with good reputation and stable quality should be selected. At the same time, strict quality inspections must be conducted on purchased pulp to ensure that it meets production requirements.
During the preparation process of pulp, the concentration of pulp needs to be controlled. Too high a concentration will make it difficult to form the paper cup, while too low a concentration will affect the strength and durability of the paper cup. Therefore, in the pulp preparation process, the pulp dilution ratio should be adjusted according to the production needs of the paper cup machine and the characteristics of the pulp to ensure that the concentration of the pulp is in an optimal state. In addition, the pulp concentration should be tested regularly and the preparation process should be adjusted in a timely manner to ensure the stability of the pulp concentration.
In addition to controlling the concentration, the texture of the pulp is also a key factor affecting the quality of the paper cup. To improve the texture of pulp, a series of measures can be taken. For example, during the pulp preparation process, add appropriate amounts of additives, such as thickeners, dispersants, etc., to improve the fluidity and uniformity of the pulp. In addition, the pulp preparation process can also be optimized, such as adjusting stirring speed, stirring time and other parameters, to improve the texture of the pulp.
At the same time, the equipment status and maintenance of the paper cup machine also have an important impact on the texture and concentration of the pulp. Paper cup machines should be maintained and maintained regularly to ensure the normal operation and matching accuracy of each component. Especially in the pulp preparation and transportation links, the wear and cleanliness of relevant equipment should be checked regularly, and damaged parts should be replaced in a timely manner to avoid impurities and pollutants from entering the pulp.

How to ensure that the accuracy of the SMD-90 paper cup machine mold can be maintained at a high level stably for a long time?

Mold design and manufacturing are the basis for ensuring accuracy. When designing and manufacturing molds, it is necessary to fully consider the shape, size and molding requirements of the paper cup, and use high-precision processing equipment and technology to ensure the manufacturing accuracy and surface quality of the mold. At the same time, the material selection of the mold also needs to be carefully considered, and materials with excellent wear resistance, high temperature resistance, corrosion resistance and other properties should be selected to improve the service life and stability of the mold.
Mold maintenance and upkeep is key to maintaining accuracy. During the use of molds, they will inevitably be subject to wear and contamination. Therefore, regular maintenance and upkeep of molds is crucial. This includes cleaning impurities and residues from the mold surface, checking the mold for wear and repairing or replacing severely worn parts in a timely manner. At the same time, the mold also needs to be lubricated and rust-proofed to reduce the impact of friction and corrosion on the accuracy of the mold.
The use and management of molds are also important factors affecting accuracy. When using the mold, you need to follow correct operating specifications to avoid damage to the mold caused by improper operation. At the same time, the storage and management of molds also need to be standardized to ensure that the molds will not be affected by deformation, rust and other adverse effects during storage.
