PLM-80 Stackable Paper Lid Machine

PLM-80 Stackable Paper Lid Machine

This machine is designed by Shunda with several patents for stackable paper lids.

  • PLM-80 Stackable Paper Lid Machine
  • PLM-80 Stackable Paper Lid Machine
  • PLM-80 Stackable Paper Lid Machine
  • PLM-80 Stackable Paper Lid Machine
  • PLM-80 Stackable Paper Lid Machine
Contact Us
Description

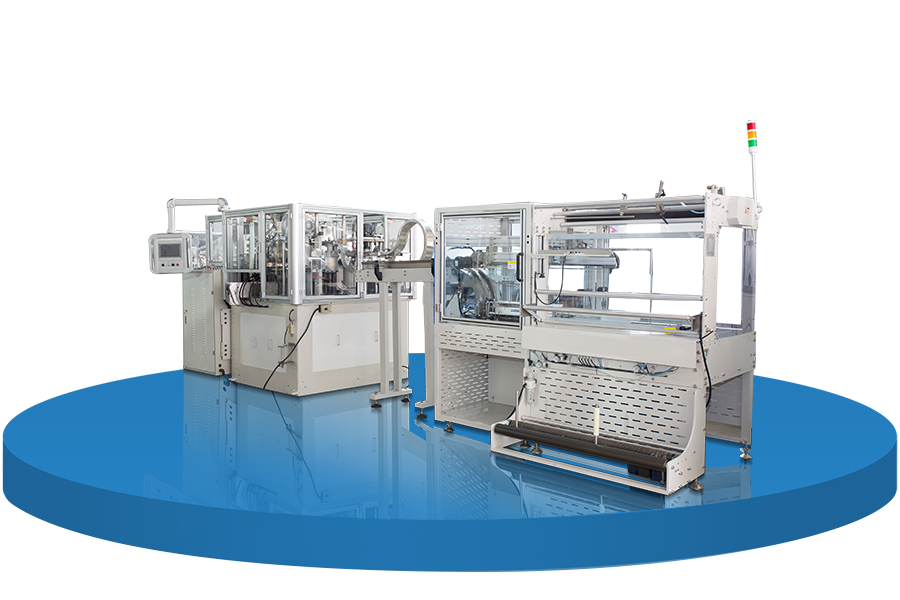

PLM-80 stackable paper lid machine is Shunda's unique design, suitable for beverage cup lids. Finished lid with angle, can be stackable, will be more easier for transport and stock. It can be applied to different drinking hole design according to customer needs.

Specification

Model PLM-80
Capacity pcs/min 85-95
Size Range mm(max) Diameter:Φ60-100
Height:15mm (min)
Suitable Paper Thickness gsm 150-450
Sealing Method / Ultrasonic & hot air system
Running Power KW 12KW, 380V/220V,60HZ/50HZ
Air Compressor / 0.4m³/Min. 0.5MPa
Net Weight Kgs 3400
Machine Dimension mm 2000*2100*1700
Application

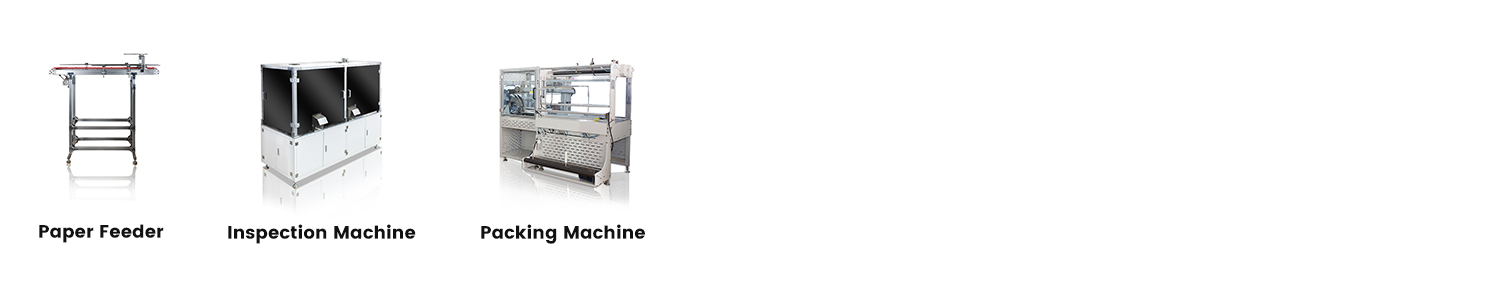

Optional Supporting Equipment

Contact Us
Haining Chengda Machinery Co., Ltd.
Haining Chengda Machinery Co., Ltd.

Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional Wholesale PLM-80 Stackable Paper Lid Machine Manufacturers and PLM-80 Stackable Paper Lid Machine Factory. We have R&D, production and sales department. After 20 years of hard work, our company has a strong technical team and a research and development center cooperating with Taiwan's senior paper container molding technology team and obtaining national patents such as a straight tube machine. Our company has modern assembly workshops, precision parts processing workshops, training centers, QA centers, and other infrastructure. Our company has CE, ISO9001 certification system, and national import and export rights.

In recent years, based on the characteristics of Chinese paper and the development trend of paper containers at home and abroad, we have developed a batch of international synchronization technology units of the intelligent molding Machine with automatic detection systems and remote connection systems for paper cup machine, paper tube machine, paper lid machine, doner box machine, etc.

Machine Industry knowledge

In what aspects is the automation level of the PLM-80 stackable paper lid machine reflected?

The PLM-80 stackable paper lid machine is equipped with an efficient automatic feeding system, which can automatically feed the paper to be processed into the machine. This system ensures a continuous and stable supply of paper by precisely controlling the feeding speed and position, reducing the tediousness and errors of manual operations and improving production efficiency.
After the paper is fed into the machine, the PLM-80 stackable paper lid machine can automatically position and align the paper. Through advanced sensors and control systems, the machine can accurately identify the position and size of the paper and automatically adjust the machine's working parameters to ensure that each paper is accurately aligned and provide an accurate benchmark for subsequent processing.
The core function of the PLM-80 stackable paper lid machine is automatic stacking and forming. Through a series of precise mechanical movements and control systems, the machine can automatically stack multiple sheets of paper together and form the desired paper cover shape. During this process, the machine can automatically adjust the stacking pressure and forming angle to ensure the quality and stability of the paper cover.
In order to ensure the stability and safety of the production process, the PLM-80 paper capping machine is also equipped with an automatic detection and alarm system. The system can monitor the operating status and processing quality of the machine in real time. Once an abnormality is discovered, it will automatically trigger the alarm mechanism and notify the operator in time for processing. This greatly reduces the failure rate and risk during the production process.
The PLM-80 stackable paper lid machine also features intelligent management and control. Through the advanced PLC control system and touch screen operation interface, operators can easily set and adjust various parameters of the machine. At the same time, the machine can also record production data and fault information, providing strong support for production management and maintenance.

How does the unique stacking design of the stackable paper beverage cup lid making machine help save storage space?

The stackable paper beverage cup lid manufacturing machine adopts advanced mechanical structure and control system to produce paper cup lids with stable structure and good stacking performance. These paper cup lids are precisely designed in shape and size to stack tightly together, reducing wasted space due to irregular shapes or size differences.
The stacking design of the manufacturing machine also takes into account the load-bearing capacity and stability of the paper cup lids. Through reasonable structural design and material selection, stacked paper cup lids can withstand a certain amount of pressure and are not easily deformed or collapsed. This ensures that the paper cup lids remain neatly stacked during storage and transportation, further saving space.
The stackable paper beverage cup lid making machine also has intelligent management functions. Through advanced control systems and sensors, the machine can monitor the stacking status in real time and automatically adjust the stacking method and quantity as needed. This intelligent management method not only improves production efficiency, but also makes the use of storage space more efficient and flexible.
