SMD-80D  Doner Box Machine

SMD-80D Doner Box Machine

It is a supply machine for paper barrels, for example, popcorn barrels, family meal buckets, doner boxes, take away boxes.

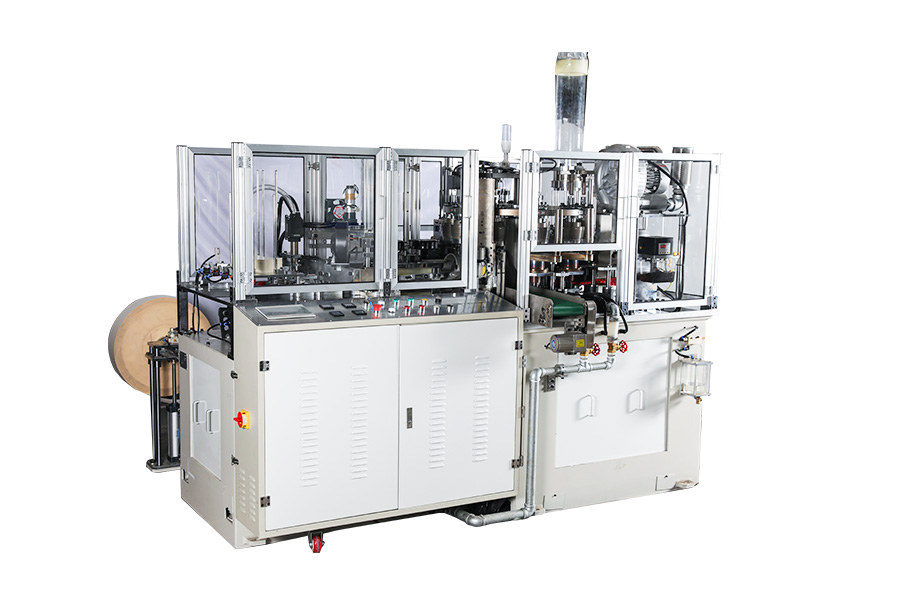

  • SMD-80D  Doner Box Machine

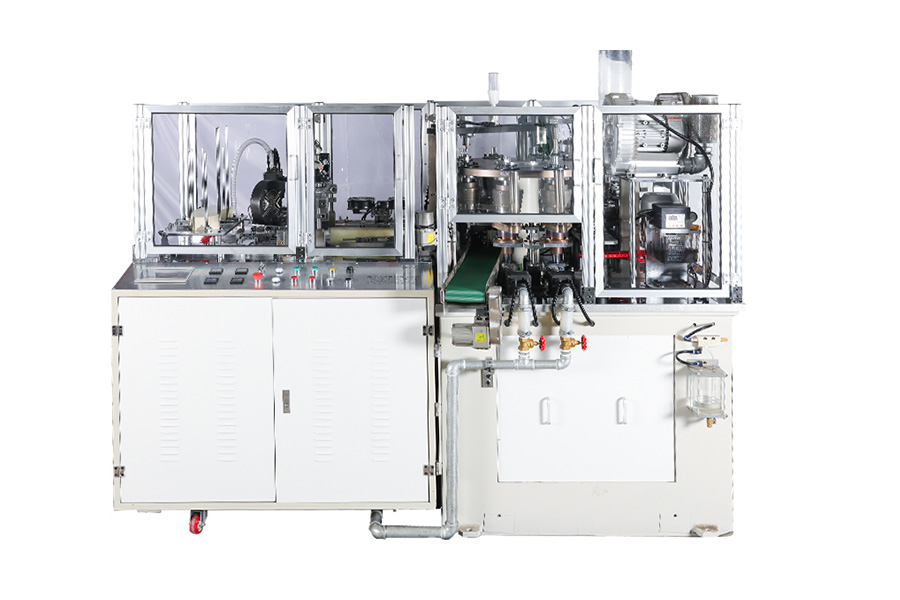

  • SMD-80D  Doner Box Machine

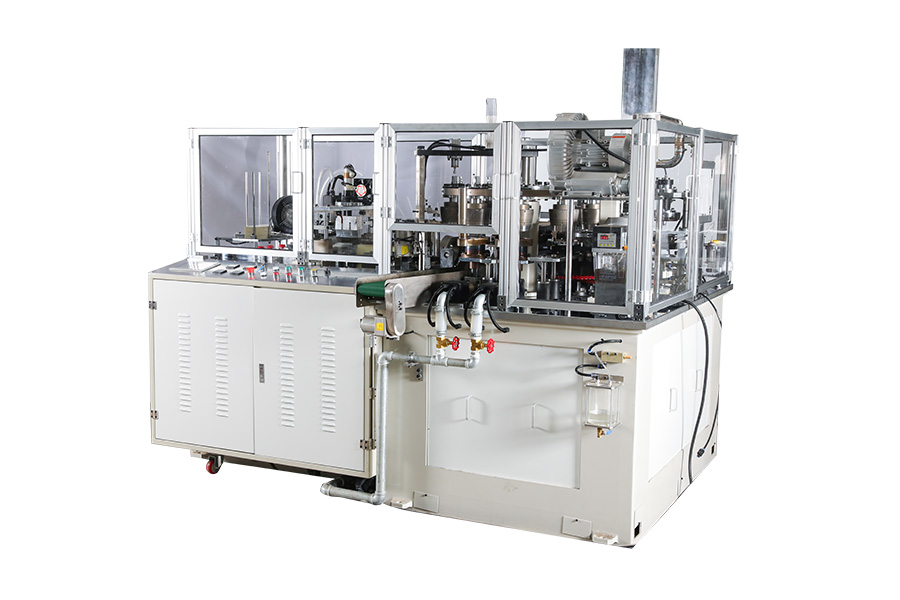

  • SMD-80D  Doner Box Machine
Contact Us
Description
SMD-80D is one of the state-of-the-art machinery for take-out container forming machines and is widely used for take-out food.

The machine comes with a rectangular tube and channel steel welding structure, which is stronger and has small deformation, automatic lubrication system, which makes all mechanical parts work much more smoothly. The bowl bottom adopts the stretching die which makes the bottom sealing quality better and leaking percentage. It has PLC control, sensor failure detecting system, and bowl bottom paper feeding controlled by servo motor, bottom paper will be delivered when the bowl tube comes, otherwise no bottom paper delivery.

The machine is equipped with a safety protection device to protect the paper while working safely, making it an ideal choice for making takeaway containers.
Specification
Model SMD-80d
Capacity pcs/min 70-80
Size Range mm(max) Top diameter:Φ175
Bottom Diameter:Φ95
Height:130
Suitable Paper Thickness gsm 135-450
Sealing Method / Ultrasonic and hot air system
Running Power KW 14
Air Compressor / 0.4m²/Min. 0.5M
Net Weight Kgs 3600
Machine Dimension mm 2500*1800*1700
Collector Dimension mm 900*900*1760
Optional Supporting Equipment
Contact Us
Haining Chengda Machinery Co., Ltd.
Haining Chengda Machinery Co., Ltd.

Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional Wholesale Paper Doner Box Making Machine Manufacturers and Paper Take-out Box Making Machine Factory. We have R&D, production and sales department. After 20 years of hard work, our company has a strong technical team and a research and development center cooperating with Taiwan's senior paper container molding technology team and obtaining national patents such as a straight tube machine. Our company has modern assembly workshops, precision parts processing workshops, training centers, QA centers, and other infrastructure. Our company has CE, ISO9001 certification system, and national import and export rights.

In recent years, based on the characteristics of Chinese paper and the development trend of paper containers at home and abroad, we have developed a batch of international synchronization technology units of the intelligent molding Machine with automatic detection systems and remote connection systems for paper cup machine, paper tube machine, paper lid machine, doner box machine, etc.

Machine Industry knowledge

How does the SMD-80D doner box machine respond flexibly to pies of different sizes and shapes?

The SMD-80D doner box machine adopts advanced mechanical design and intelligent control system, allowing it to be flexibly adjusted according to pies of different sizes and shapes. The machine is equipped with an adjustable mold system, and users can replace the molds with different specifications as needed to produce boxes that match the size of the pie. Whether it is a small and exquisite mini pie or a huge giant pie, the SMD-80D can easily handle it, ensuring that each pie has a suitable packaging box.
In addition to size adjustment, the SMD-80D doner box machine can also handle pies of different shapes. By adjusting the working parameters of the machine and the angle of the mold, users can produce pie boxes in various shapes such as round, square, heart-shaped, etc. This flexibility allows the SMD-80D to meet the needs of various unique and innovative pies on the market, providing food manufacturers with a broader market space.
In addition, the SMD-80D doner box machine also has efficient production capabilities. Its automated production process greatly reduces the need for manual operations and improves production efficiency. At the same time, the machine's precise control system ensures the stable and reliable quality of each pie box, meeting the food industry's high requirements for product quality.

How is the compressive strength and moisture resistance of paper takeaway doner boxes achieved?

The improvement in compressive strength of paper take-out pie boxes mainly relies on its unique structural design. Through precise calculation and design, the manufacturer ensures that the box has sufficient support while remaining lightweight. Common methods include stacking multiple layers of paper, increasing the thickness of the box wall, and setting reinforcement ribs. These designs can disperse external pressure, reduce the deformation and damage of the box when it is squeezed, and ensure the integrity of the pie during transportation.
In terms of moisture resistance, paper take-out doner boxes also use a variety of technical means. On the one hand, manufacturers add waterproofing agents during the paper production process, so that the paper itself has certain waterproof properties. On the other hand, the box will also undergo surface treatment during the production process, such as coating with waterproof film, spraying with waterproofing agent, etc., to further improve its moisture resistance. In addition, some high-end paper take-out pie boxes also use special sealing designs, such as heat sealing technology, ultrasonic sealing, etc., to ensure that the box can maintain sealing when exposed to water and prevent moisture from penetrating.
In addition to the above technical means, the compressive strength and moisture resistance of paper take-out pie boxes are also related to the paper materials selected. Not only does high-quality paper have better toughness and strength, it is also better able to carry waterproofing agents and treatments, thereby improving the overall performance of the box.
